Allygn M.U.D. Fork

Allygn M.U.D. Fork

€580.00

The Allygn M.U.D. Fork is a Swiss army knife for your gravel bike, significantly boosting its utility for randonneuring, touring, and bikepacking. Developed in Berlin and tested on the trail and in the lab, it’s certified for the toughest conditions. Featuring all the mounts for cargo cages, rando racks, fenders, and lights, and big tire clearance, this lightweight yet strong fork is ready for just about any off-road adventure.

Price includes VAT. Free shipping to Germany.
Cost of international shipping is calculated at checkout.
Non-EU recipients are responsible for possible taxes and duties.

Logo color:
Quantity:
Add To Cart


Key features

    • All the reinforced mounts for rando racks, cargo cages, lights, and fenders

    • Clears big tires up to 700c x 55 mm or 650B x 2.4” for tackling tough terrain in comfort

    • Sleeved internal brake hose routing for a clean appearance

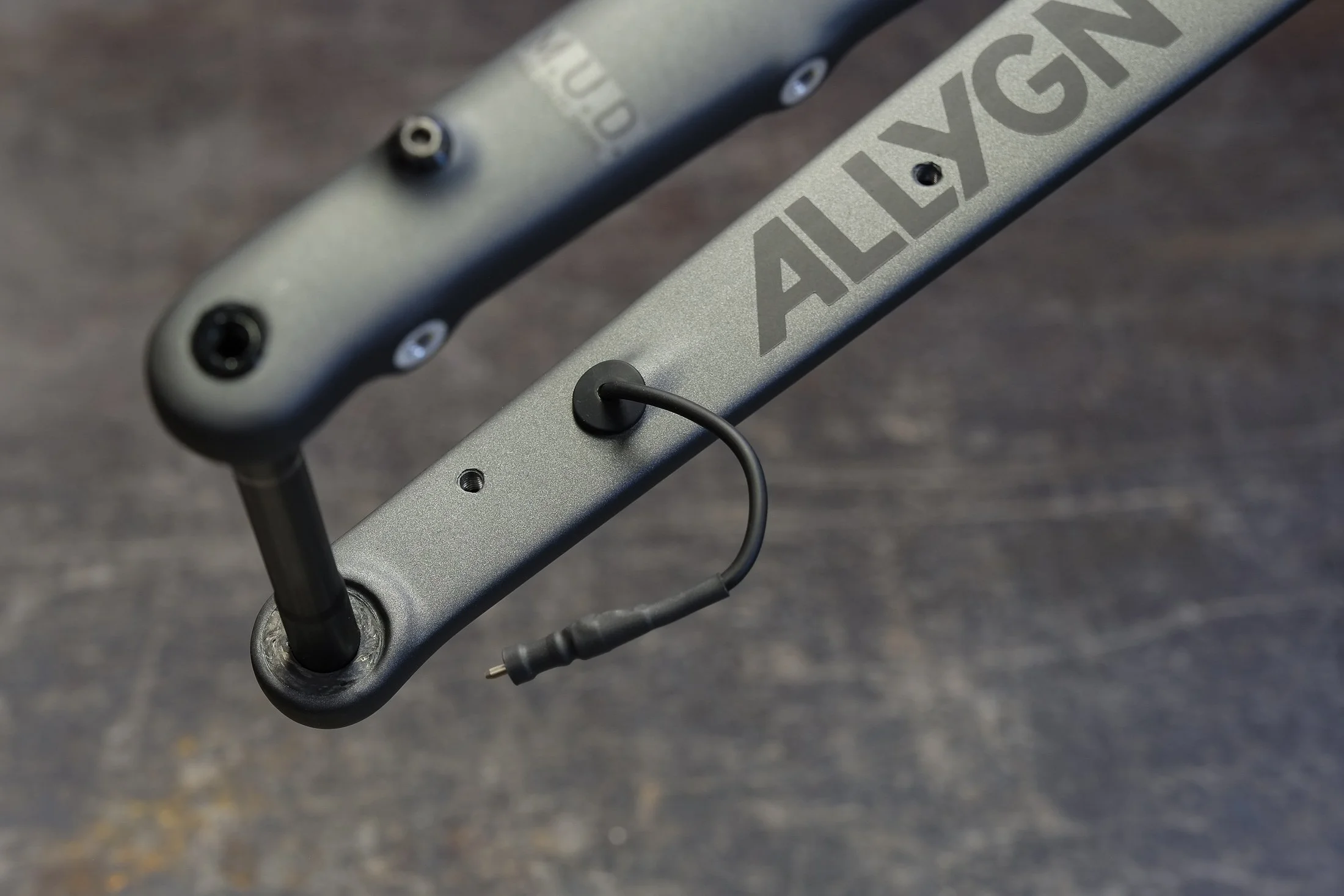

    • Dynamo cable routing through the fork leg, under the crown, and up through the steerer for dynamo light and charging setups

    • Light, stiff, and certified strong thanks to carbon-fiber construction and rigorous independent testing

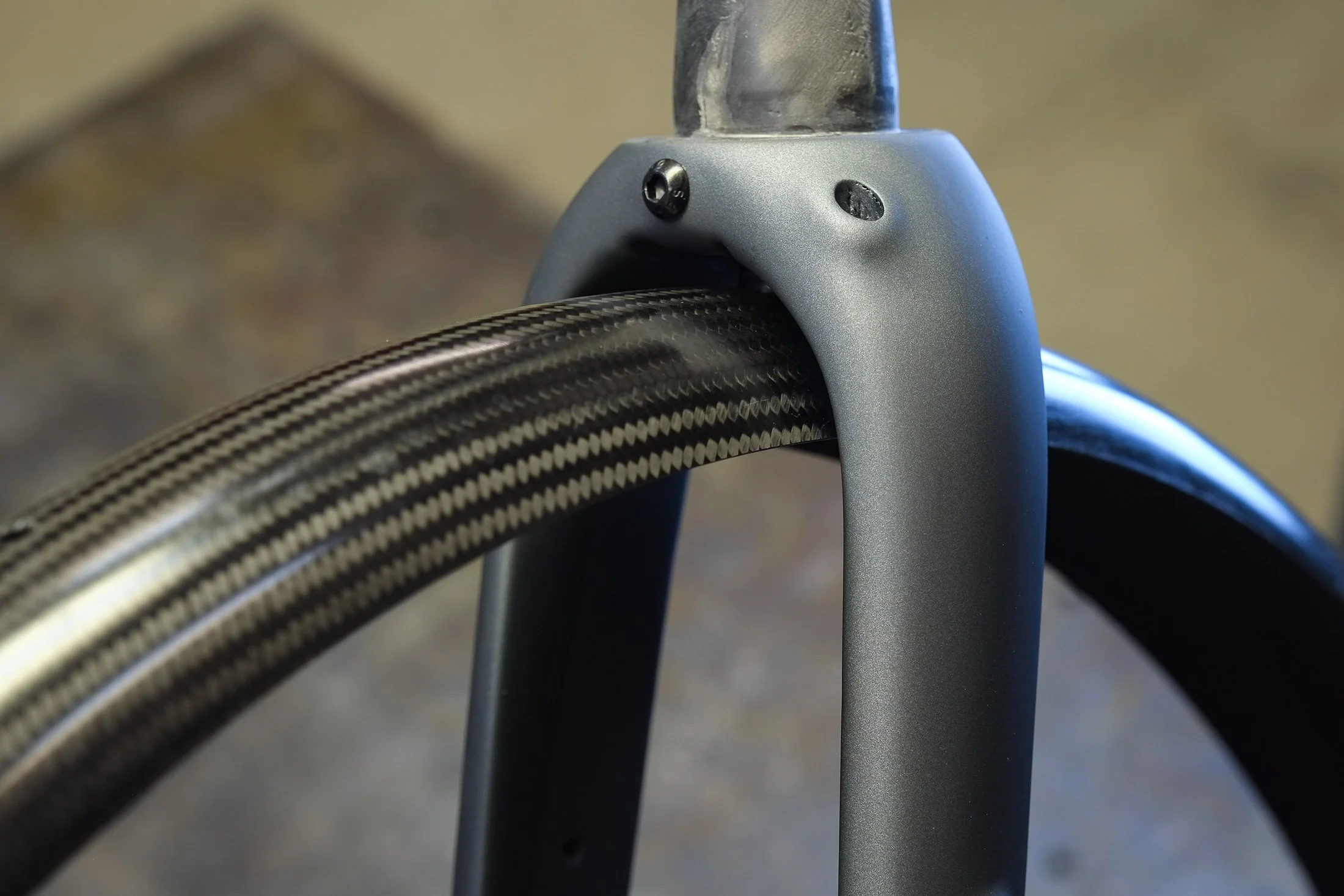

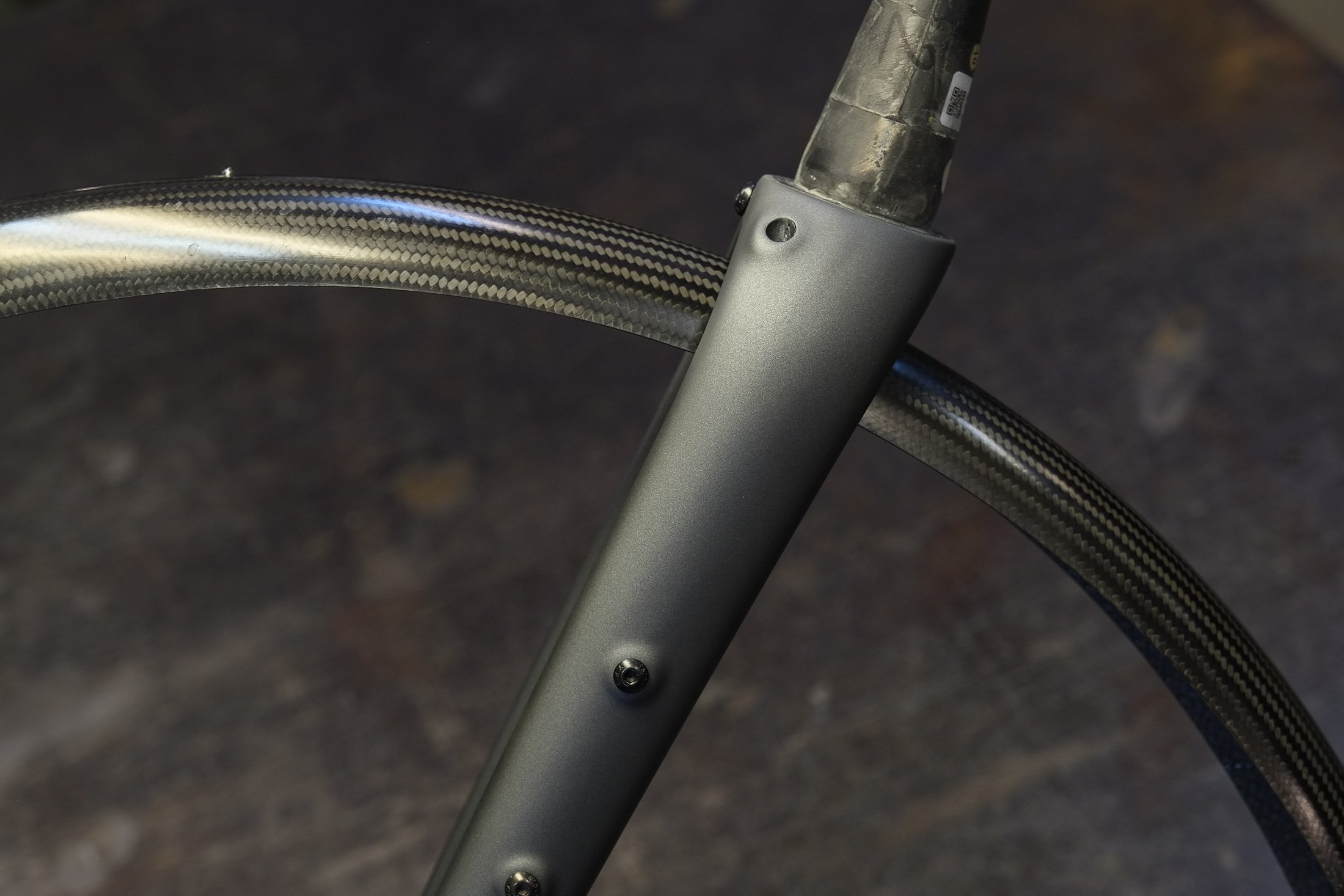

    • Compatible with full-length fenders up to 60mm width to keep your feet dry

    • Drop-in replacement on most gravel bikes with extra-long 400mm tapered steerer

    • Material: high-tensile strength carbon fiber

    • Paint: Glimmer Grey with black or white logo, matte soft-touch finish

    • Tire clearance: up to 700C x 55 mm or 650B x 2.4" (measured width)

    • Fender compatibility: up to 60 mm wide with vertical M6 mount under the fork crown, M5 dropout mounts

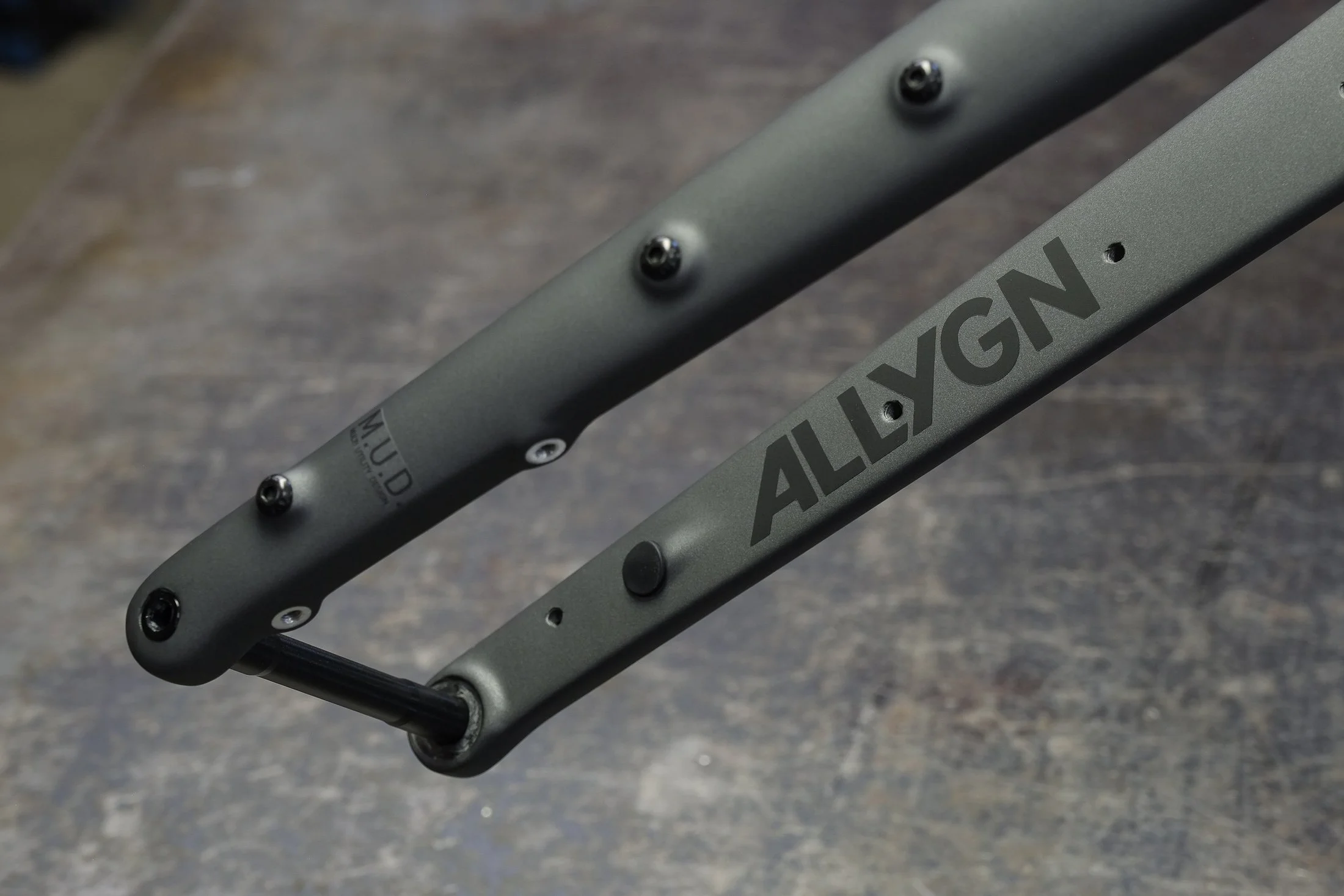

    • Rack mounts: 3 x M5 fork leg mounts (max. load 2 kg each - 6 kg per side), M6 fork crown mount for front rack or headlight

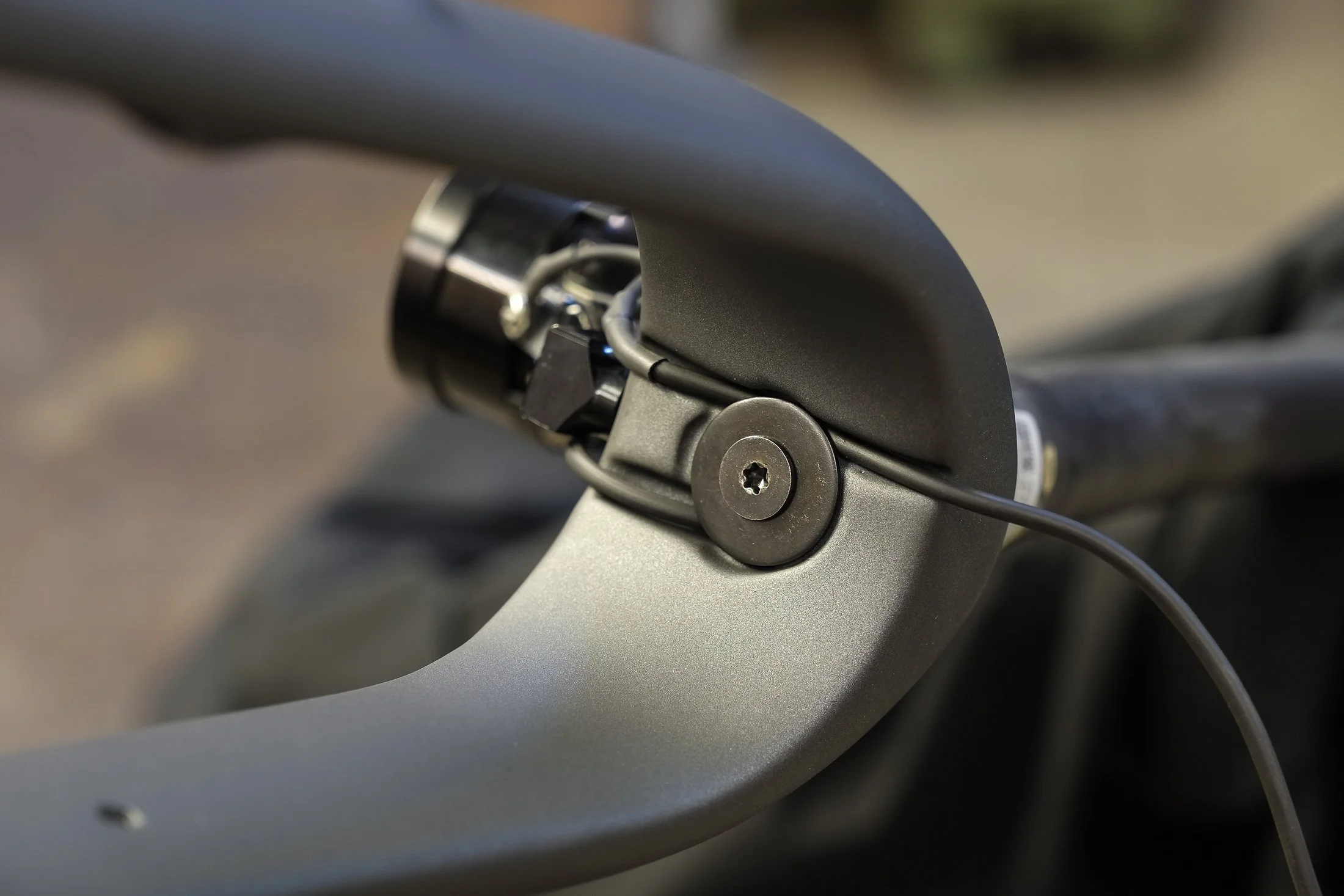

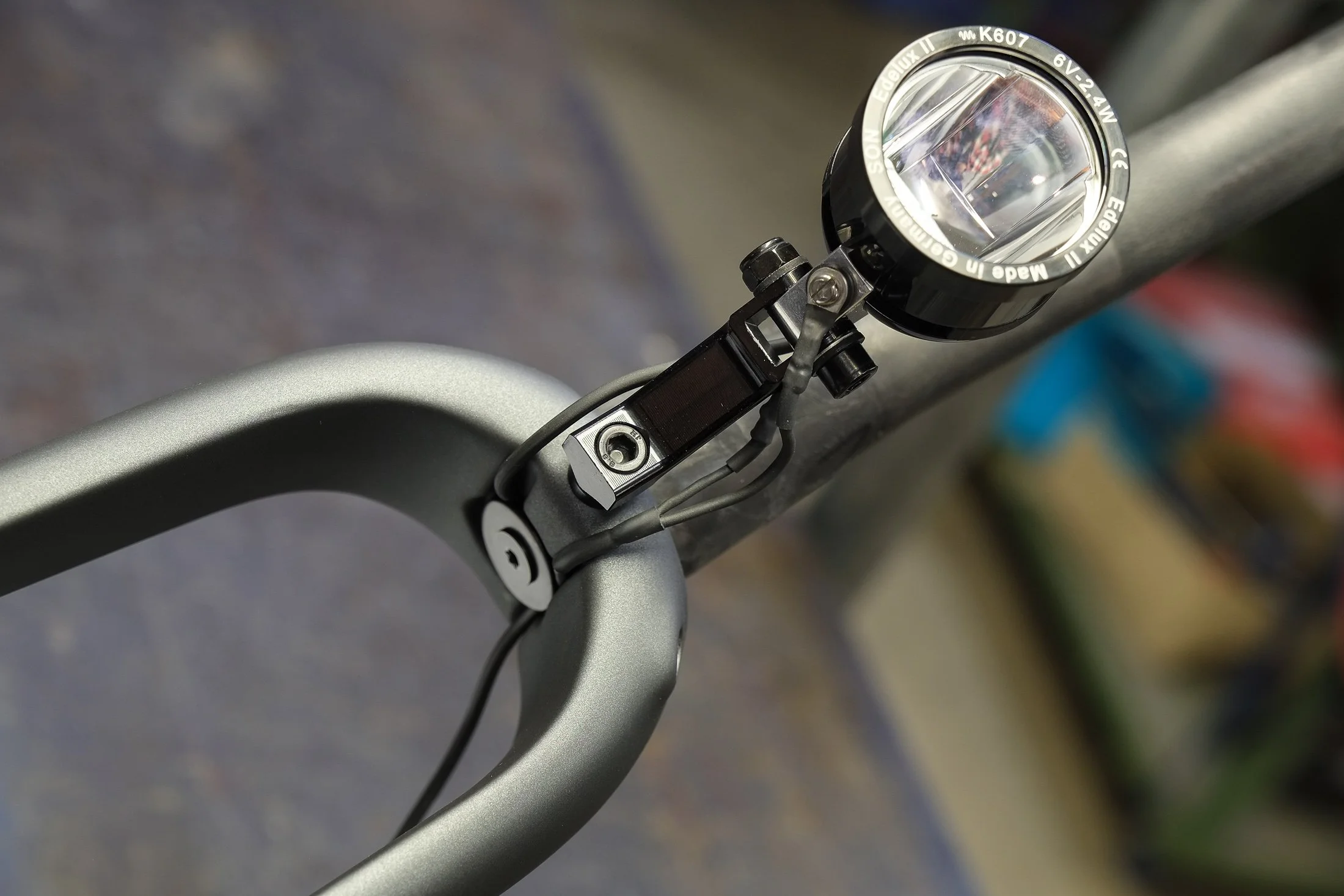

    • Dynamo cable routing: two internal channels in right fork leg for light and extra device, inside steerer tube for charger, under fork crown for taillight

    • Brakes: Flat-mount disc brake with internal hose routing, rotor size 140 - 160 mm

    • Geometry: axle-to-crown 395 mm, rake 55 mm

    • Frame fit: 1 1/8" - 1 1/2" tapered steerer tube (400 mm long), fork crown diameter 57 mm, fork crown race diameter 39.8mm

    • Hub spacing: 12x100 mm through-axle, dropouts will accept 15 mm hubs with adapter sleeve

    • Certified by Zedler Institute according to Category 1 ISO 4210:2015 standards, rider bike system weight 100 kg. Certified by EFBE Institute according to EFBE TRI-TEST Gravel / Cross Category 2 EN 17406:2020, rider bike system weight of 135 kg. Rack/cage mounts, 7 kg each side, according to DIN EN ISO 11243:2024-01, 5.9.1

    • Weight: 570 g

    • Included: 12 mm through-axle, steerer tube expander with top cap, Ass Savers Mudder mini fender, mounting hardware, rubber dynamo cable hole plug, manual

    • Country of origin: fork and and axles made in China. Expander made in Taiwan. Painted in Poland. Ass Saver made in Sweden. Assembled in Berlin, Germany

    • Learn more at ALLYGN.com

Mid-trail geometry with extra-long steerer

Race-tested and lab-certified
